Mass Transfer Media 2Y 304 Metal Corrugated Plate Structured Packing
1. factory metal corrugated plate structured packing
| Item | Unit | 125X | 125Y | 250X | 250Y | 350X | 350Y | 500X | 500Y |
| corrugation height h | mm | 24.0 | 11.5 | 8.4 | 6.0 |
| corrugation inclination θ | (°) | 30 | 45 | 30 | 45 | 30 | 45 | 30 | 45 |
| corrugation distance 2B | mm | 39.6 | 19.0 | 14.0 | 9.9 |
| corrugation angle β | (°) | 79.0 | 79.1 | 79.6 | 79.0 |
| void fraction ε | δ=0.15mm | % | 99.4 | 98.6 | 98.0 | 97.2 |
| δ=0.12mm | % | 99.5 | 98.9 | 98.4 | 97.8 |
| δ=0.10mm | % | 99.6 | 99.1 | 98.7 | 98.2 |
| Perforated hole diameter d0 | mm | 4.5 | 4.5 | 4.0 | 4.0 |
| Opening rate σ | % | 8.5-9.5 | 8.5-9.5 | 9.0-10.0 | 9.0-10.0 |
| radius of curvature of the top circle of corrugation angle R | mm | ≤2.0 | ≤1.4 | ≤0.9 | ≤0.5 |
Note: The influence of opening rate on the plate is not calculated
2. factory metal corrugated plate structured packing advantage
The advantages of corrugated packing are compact structure and large specific surface area. The specific surface area can be adjusted by the shape of corrugated structure. There are 125, 150, 250, 350, 500, 700 and so on. The two adjacent plates of packing are perpendicular to each other, which makes the upward flow change direction and the falling liquid redistribute continuously, so the mass transfer efficiency is high. The regular arrangement of packing reduces the flow resistance and improves the treatment capacity. The disadvantage of corrugated packing is that it is not suitable for processing materials with high viscosity, easy polymerization or suspended solids. In addition, it is difficult to load, unload and clean the packing, and the cost is also high.
According to the material structure, corrugated packing can be divided into mesh corrugated packing and plate corrugated packing, and its material can be divided into metal, plastic and ceramic.
3. Function of metal corrugated plate structured packing in distillation column
Through the packing, the two-phase flow is upward and downward convection. Gravity is the driving force of liquid flow, and pressure difference is the driving force of gas flow. The two phase flow is mass transfer and heat transfer through the two forms of film surface and spray. The mass transfer and heat transfer of the two phases in the plate column take place in the gas-liquid mixed phase on the upper surface of the tray, on the liquid layer surface of the downcomer and on the bubbling area caused by the mass transfer elements.

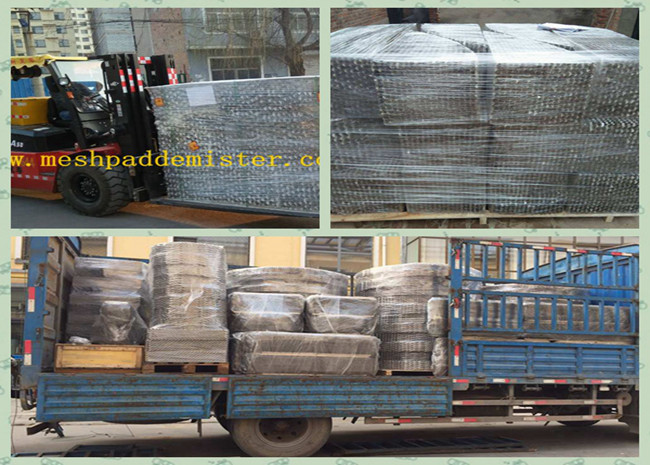

4. Loading and shipping of metal corrugated plate structured packing
every year we manufacture and supply hundreds of cubic meters of metal structured packing in different models. There are many popular types and materials for option. Custom order is welcome, too! We are happy to help with what you need!
