SS316 1.5" 38mm Stainless Steel Saddle Rings Metal Random Packing

1. Introduction:

Stainless Steel Raschig Super Rings --- Tower Packing New Choice

Now we have a new optimal solution to industry’s demands for modern heavy duty packing, as the introduction of super raschig ring. Different from previous packing shapes, the super raschig ring avoids the droplet formation with large gas loads.
The super raschig ring has 30% more loading capacity, almost 70% lower pressure drop, and 10% higher mass transfer efficiency than conventional metal random packing.

2. Metal Saddle Rings Specification:

38mm Stainless Steel 304 Saddle Ring:

3. SS 316L Random Packing Saddle I Ring Advantage:

The metal saddle ring gives one of the best choices for high performance random packing, with low pressure drop and high efficiency. This specially designed saddle-shape random packing provides a lower pressure drop at the same vapor and liquid loads. It can be effectively used in both high pressure and vacuum towers. Others of its advantages include large effective inter-facial area, high mechanical strength and low cost. Metal saddle rings are therefore used in many distillation and absorption columns all around the world. It is available in various sizes, which give different combinations of efficiency and pressure drop.

​

4.Metal Saddle Ring Packing Applications:

• Rectification towers

• Separation of organic acid

• Absorbing tower

• Desorbing tower

• Acid Gas Removal

• Atmospheric and high pressure distillation

5. Hualai metal tower packing product groups:

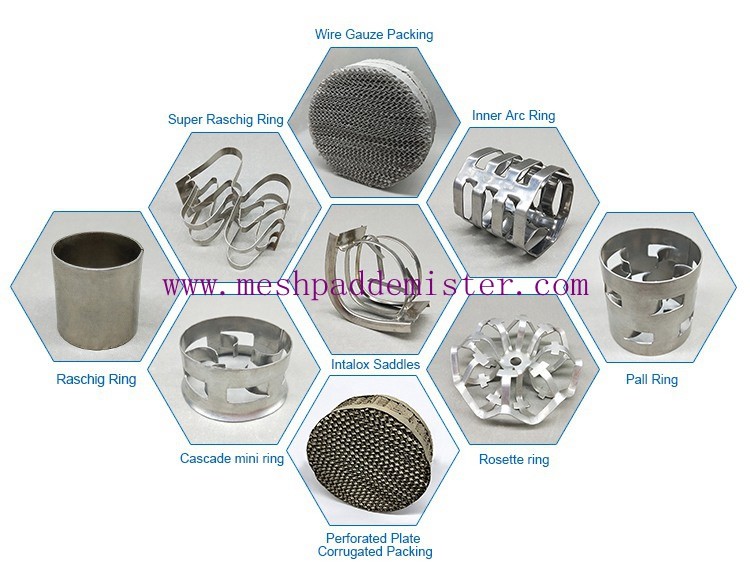

In Hualai factory, we produces and exports perforated corrugated metal plate structured packing, corrugated wire gauze packing, metal random packing like pall rings, intalox saddles, cascade mini ring, raschig ring, rosette ring, super raschig ring, inner arc ring, conjugate ring, mini ring, etc.. All these types of packing are available in carbon steel, stainless steel 304, 316L. Additionally, titanium, monel, copper and some other alloy materials are also available for some of the packing types, too.

Welcome your inquiry for more info!

38mm metal random packing

1.5" metal random packing

saddle ring packing ss316

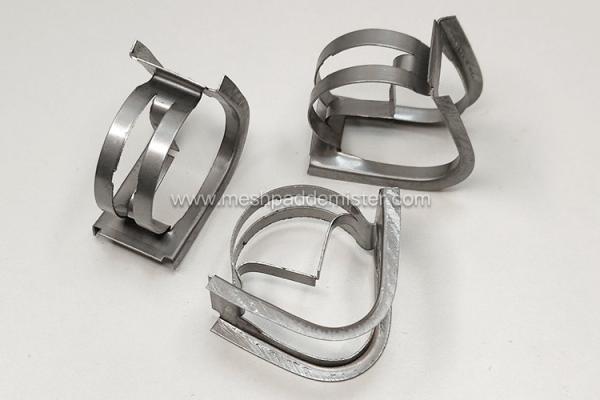

1.5" Ss316 38mm Metal Random Packing Saddle Ring Images
